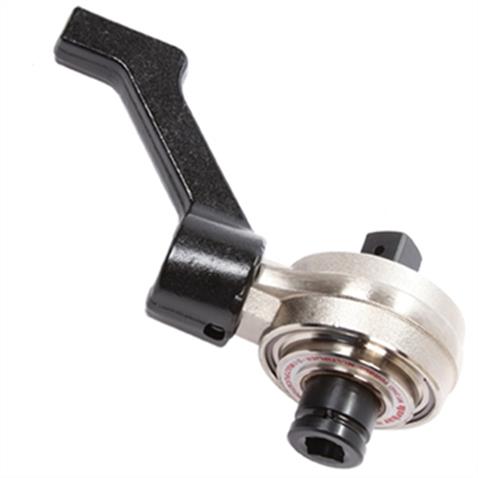

Norbar Torque Multiplier 1300Nm

Product Details

The 'Highwayman' torque multiplier has been designed for use where it is necessary to provide higher torques than would otherwise be possible due to limitations of space or operator strength. Input to the multiplier is via a ratchet torque wrench set to one fifth of the desired output torque.

ANHT3 - Technical Specifications

•Tool Weight: 3.8 Kg
•Multiplication Ratio: 5:1
•Output Square: 3/4"
•Input Square: 1/2"
•Velocity Ratio: 5.333:1
•Plate Weight: 1.3 Kg

ANHT31 - Technical Specifications

• Tool Weight: 3.8 Kg
• Multiplication Ratio: 5:1
• Output Square: 1"
• Input Square: 3/4"
• Velocity Ratio: 5.333:1
• Plate Weight: 1.3 Kg

Features

• 5:1 torque multiplication, accuracy guaranteed better than +/-4%
• Supplied with two reaction bar styles for maximum versatility
• Robust construction means minimal maintenance and long life
• Supplied in a carrying case
• 1300 N.m version has a spare 3/4" output square included in the kit
